Durite's Progressive Safe System (PSS) complies with TfL's DVS Requirement
Following the release of the Blind Spot Information System (BSIS) and Moving Off Information System (MOIS) technical specifications from Transport for London (TfL), we have video documented the required tests to highlight our system is fully compliant.
We have tested our system as instructed in the specification documents below, and we can confidently say that our system has met all the requirements and upcoming changes in DVS Phase 2.
Testing Durite's PSS to TfL's Requirements

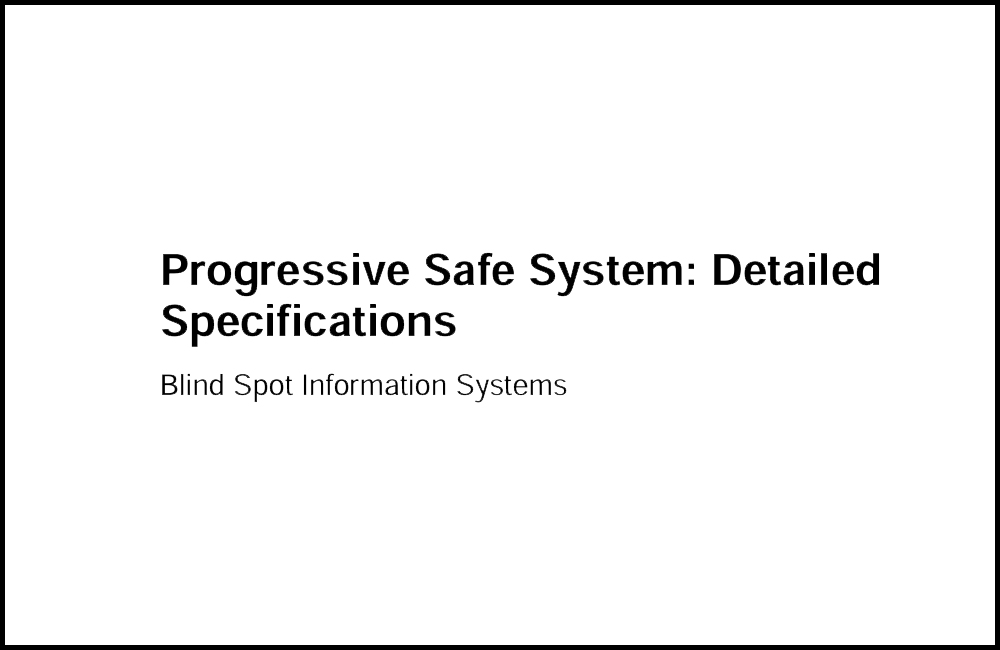

Blind Spot Information System (BSIS) Testing
1. Static test | nearside area 9m x 2.2m
Presence of VRU should be signalled (visual signal only) when in the nearside area.
Required tests: Cyclist: 500mm (7km/h), 1100mm (12km/h), 2200mm (18km/h)
2. False positive test | Corridor >20m, Road Sign
No information or warning signal should be issued when passing the sign.

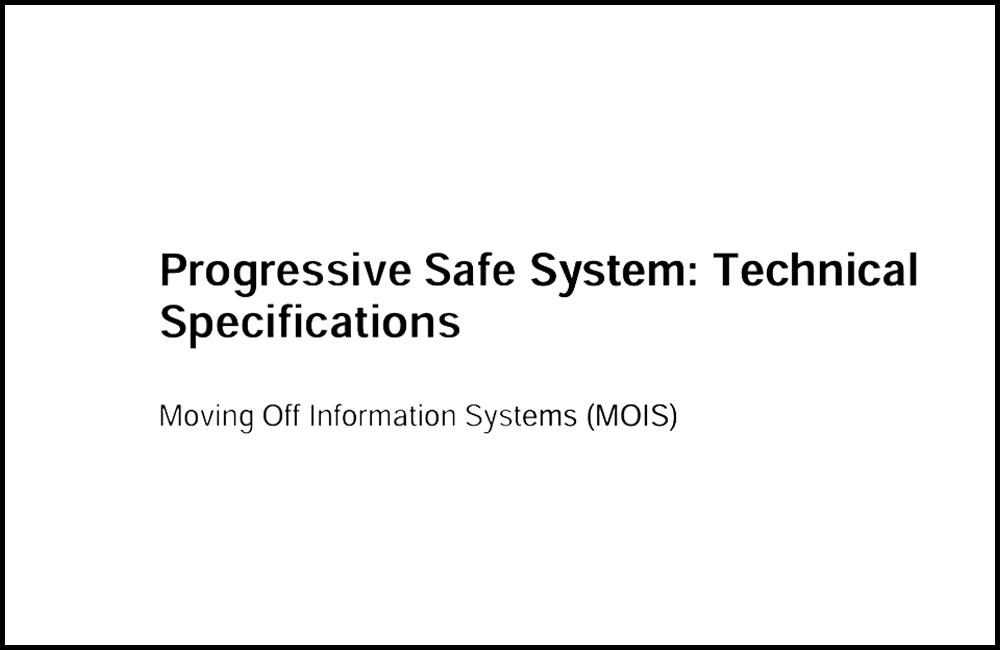

Moving Off Information System (MOIS) Testing
Front area 2m x (width vehicle + 500mm each side)
1. Information signal
Presence of VRU should be signalled (visual only) when in the coverage area.
Required tests: Cyclist crossing: 500mm (3km/h), 2000mm (5km/h), Pedestrian crossing: 500mm (4km/h), 1000mm (4km/h), 2000mm (4km/h)
2. Warning signal
Warning signal (visual & audible) should be issued on release of brakes.
Required test: moving off manoeuvre & static pedestrian in front area.
DVS Progressive Safe System (PSS) Requirements
For HGVs over 12T with a DVS star rating less than 3-star, and are looking to travel through Greater London.
Mirrors
Class V & VI Mirrors can now be replaced by an ECE R46 approved Camera Monitoring System; or a combination of them can be used.
Nearside camera
Nearside camera must completely eliminate the remaining vehicle blind spot at the nearside.
Side sensor detection
Sensors must ensure full coverage down the nearside of vehicles and trailers, and must not activate in relation to roadside furniture.
Front Sensor Detection / MOIS
HGVs must have a front sensor system that activates on a proximity information signal detecting pedestrians or cyclists.
Explore our range of DVS Progressive Safe Systems
We have put together a range of All-in-One kits to suit your fleet and ensure full compliance with DVS Phase 2.
DVS Progressive Safe System (PSS) >
Basic requirement to comply with the Direct Vision Standard (DVS) Phase 2
DVS Progressive Safe System (PSS) with DVR >
Record evidence in case of an incident and comply with DVS Phase 2
DVS Progressive Safe System (PSS) with 4G DVR >
Record evidence, manage your fleet in real time and comply with DVS Phase 2
Question of DVS?
WHEN DO I NEED TO HAVE THE DVS PROGRESSIVE SAFE SYSTEM FITTED?
If your HGVs weigh over 12T, are rated 3 stars or below, and you are travelling or operating within Greater London, then you will need a DVS Progressive Safe System in place from 28th October 2024.
The Direct Vision Standard (DVS) Phase 2 application opens on 24th June 2024. HGVs with a DVS star rating of 0, 1, or 2 applying for a DVS Safety Permit after this date will need to have a Progressive Safe System (PSS) fitted to their vehicle before it can be granted.
From 28th October 2024, all HGVs over 12 tonnes travelling through Greater London will need to have a DVS star rating of 3 or higher, or a PSS fitted if their rating is lower. Operators who can prove they have ordered a PSS or booked an installation, and register this with Transport for London (TfL) before 28th October 2024, will be granted a grace period until January 31st, 2025 to get the system fitted.
