Blind Spot Detection System
With this kit, you can manoeuvre safely and detect pedestrians and cyclists.

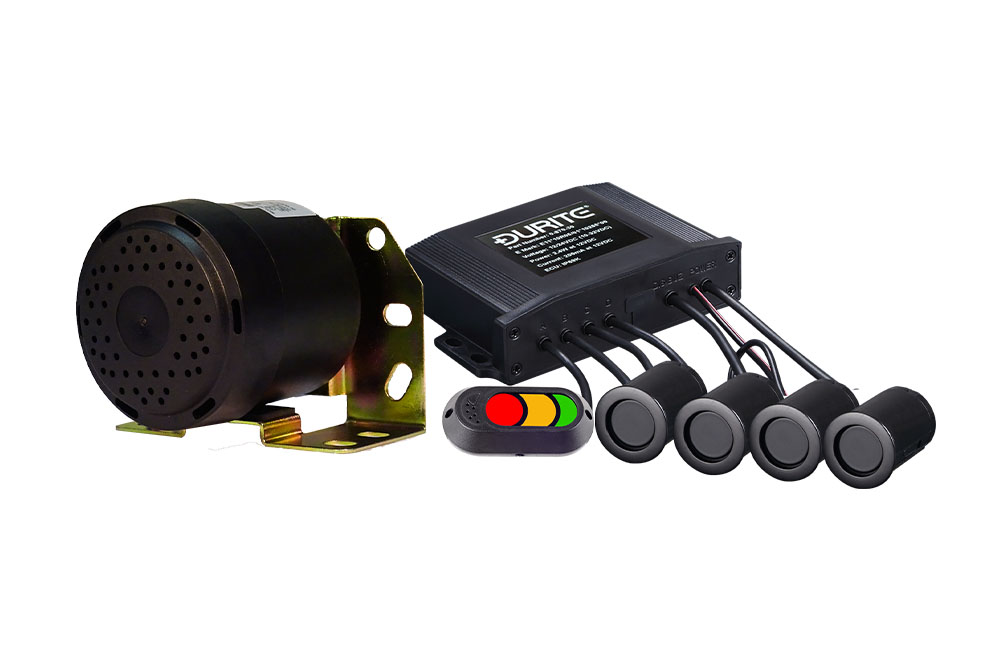

A side detection system detects pedestrians and cyclists and proactively warns drivers to prevent unnecessary injuries and road accidents. It greatly enhances the drivers’ awareness of their surroundings and improves the safety of others. It is also one of the essential parts of the DVS (Direct Vision Standard) Safe System. The Durite blind spot side detection kit features a superfast detection speed of 0.2s and also features a traffic light display showing the location of the hazard. The number of cameras in this kit will vary to fit your application.
E-Marked
2-year warranty
Integrates with Durite monitors
Installation services
Benefits of Durite Blind Spot Detection System
Superfast Detection

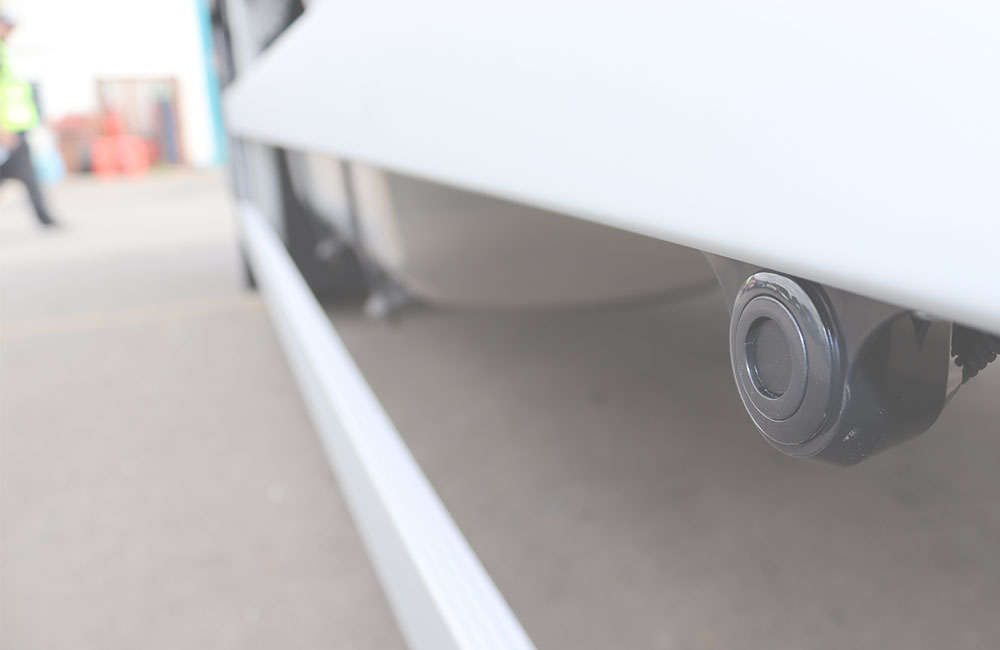

Superfast blind spot side sensor detection system with self-checking function to check all sensors are in working order.
Protected Components
All cabling & connectors are tightly sealed to ensure your system withstands weather conditions and vibrations.
Extended warranty
For your peace of mind, this blind spot detection system comes with an extended 2-year warranty as standard.
Best-in-class Blind Spot Detection System
Operating Voltage | 12/24Vdc |
Current Consumption | 200m A @ 12Vdc |
Power Consumption | 2.4Watts @ 12Vdc |
Buzzer Frequency | 2400Hz ± 2Khz |
Buzzer Volume | 72-90 ± 5dB @30cm |
Sensor Frequency | 40Khz ± 2Khz |
Zone Tolerance | ±10cm Min |
Sensor Height | >60cm Max |
Sensor Cable Length | 10m |
Horizontal Detection Angle | 90° |
Vertical Detection Angle | 60° |
ECU IP rating | IP69K |
Sensor & Connector IP Rating | IP68 |
Vibration Rating | 5G |
Shock Rating | 10G |
