Compliant DVR Recording System
With this kit, you can manoeuvre safely, record evidence and comply with DVS, FORS and CLOCS.
Durite is a leader in vehicle safety and a FORS Associate. We have developed a range of All-in-One Safety kits to comply with DVS, FORS and CLOCS and to record evidence in case of an incident. This kit is built to the highest standard and uses our best-in-class mobile digital video recorder. Footage is primarily stored on the tamperproof hard drive, and in the event of an accident, all data is automatically locked in a separate folder to prevent them from being overwritten. The number of cameras in this kit will vary to fit your application.
For 12V & 24V vehicles
E-Marked
2-year warranty
Installation services
Benefits of Durite Compliant DVR Kit
Expertise of regulations
Durite is a leader in vehicle safety and a FORS Associate. We study the relevant regulations thoroughly to ensure all our products meet the strict requirement. Leave us to do what we do best and spend your time on things that are more important to your business.
All-in-one, end-to-end solution
Our team of experts is on hand with the right All-in-One safety kit for your fleet ensuring you are fully compliant. From demoing, to specifying, to installing nationwide and aftercare support; we pride ourselves on outstanding customer service at every contact level at Durite.
Best-in-class recording solution
Durite mobile digital recorders (MDVRs) are known for their robust and vibration-resistant build and modern design. They can easily be integrated with our other vehicle safety products, optimising the function of your solution. For your peace of mind, all our DVR Kits come with extended warranty as standard.
Compliant DVR Kit Components
- 4-camera digital video recorder system with monitor
- Blind Spot Information System (BSIS)
- Moving Off Information System (MOIS)
- Driver audible and visual alerts
- Warning sign
- Reversing & Left-turn alarms
MOIS & BSIS
Eliminate nearside and front blind spots with our smart active AI Camera Blind Spot Information System (BSIS) and Moving Information System (MOIS) that only detect moving objects.

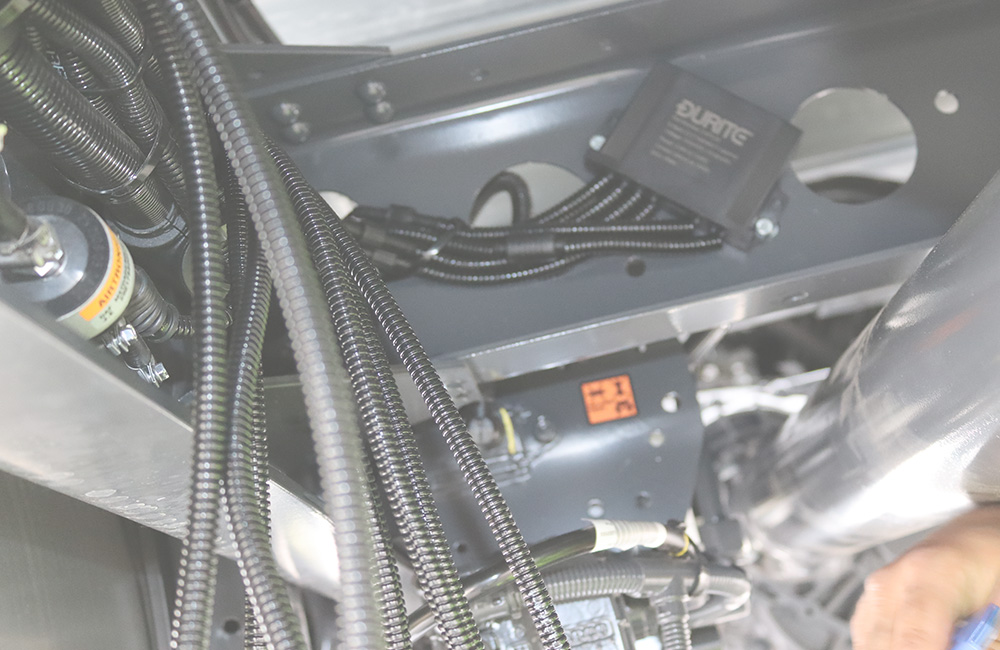

PROTECTED COMPONENTS
All cabling & connectors are tightly sealed to ensure your system withstands weather conditions and vibrations.
Best-in-class DVR
The best-in-class DVR technology to record high definition footage in case of an incident and to expedite insurance claims.
Best-in-class Mobile Digital Video Recorder
Video Input | 4 channels AHD(1080P)+1 channels IPC(1080P) |
Total Resource | 4*720P@30fps+1*1080P@30fps 4*1080P@15fps+1*1080P@30fps |
Display Split | 1/4 |
On-screen display | GPS information, alarm, vehicle No., speed, date/time |
Video Compression | H.264/H.265 |
Image Resolution | Analog; PAL: 1080P (1920X1080), 720P (1280X720), WD1 (928X576), WHD1 (928X288), WCIF (464X288), D1 (704X576), HD1 (704x288), CIF (352x288) NTSC: 1080P (1920X1080), 720P (1280X720), WD1 (928X480), WHD1 (928X240), WCIF (464X240), D1 (704x480), HD1 (704x240), CIF (352x240); Digital ; 1080P (1920X1080), 720P (1280X720) |
Image Quality | 1-8 levels adjustable |
Recording Mode | Boot up/Schedule/Alarm |
Standby recording | 0-60 minutes |
Post-recording | 0-30 minutes |
Playback Channel | 1 channel by local playback |
Playback Search Modes | date/time, channel, event |
GPS | Location tracking, speed detection and time sync |
Sensor | Built-in G-Sensor |
Storage | 1TB 2.5" SATA hard disk |
Ports | USB2.0 and Serial Port RS232 |
Intercommunication | 1 MIC interface |
Power Input | DC8-36V |
Power Output | 5V@1A |
Max Power Consumption | 32W |
Dimensions (L x W x H) | 206.0 x 170.0 x 70.5 mm |
Weight (with hard disk) | 1.24Kg |
Operating Temperature | -10°C - +70°C |
Operating Relative Humidity | 8%-90% |
Blind spot detection system
Operating Voltage | 12/24Vdc |
Current Consumption | 200m A @ 12Vdc |
Power Consumption | 2.4Watts @ 12Vdc |
Buzzer Frequency | 2400Hz ± 2Khz |
Buzzer Volume | 72-90 ± 5dB @30cm |
Sensor Frequency | 40Khz ± 2Khz |
Zone Tolerance | ±10cm Min |
Sensor Height | >60cm Max |
Sensor Cable Length | 10m |
Horizontal Detection Angle | 90° |
Vertical Detection Angle | 60° |
ECU IP rating | IP69K |
Sensor & Connector IP Rating | IP68 |
Vibration Rating | 5G |
Shock Rating | 10G |
