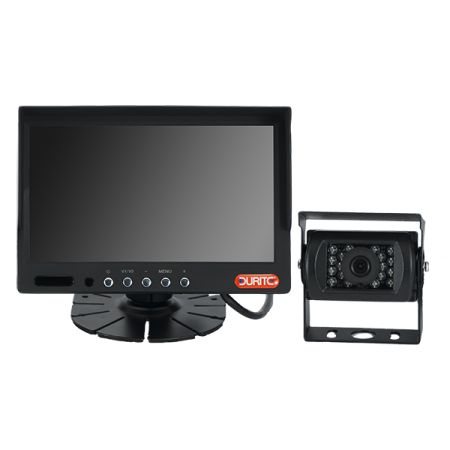

7" Camera System (2 camera inputs, incl. 1 x Sony CCD camera)
| Code | Unit (GBP) | Qty | Price | Pack Qty | Price (GBP) | Stock | Price Type | ||
|---|---|---|---|---|---|---|---|---|---|
|
0-776-67 (discontinued)
Mirror image
|
|||||||||
|
0-776-67 (discontinued)
Mirror image
|
- | - | Pack Qty: Ea | Ea | - | - | |||
| MONITOR | - |
|---|---|
| Display Device | Colour TFT LCD |
| Size | 7 Inch |
| Interface | Digital TTL |
| Resolution | 800 x RGB x 480 |
| Luminance (Nits) | 500 |
| System | PAL / NTSC (Auto) |
| Contrast Ratio | 500:1 |
| Power Consumption | 5W |
| Power Supply | 12V/24V DC |
| View Angle (LR/UD) | L 60 |
| Connect Plug | 4 Pin Aviation |
| Weight | 360g |
| Dimensions (mm) | L 84 x W 76 x H 70mm |
| Certifications | E Marked |
| CAMERA | - |
| Type | 1/3" Sony CCD |
| Voltage | 12VDC |
| Lens | f 2.8mm |
| Microphone | Yes |
| IP rating | IP68 |
| Sensitivity | 0 Lux with IR on |
| S/N Ratio | 48dB |
| Current Draw | 200mA |
| Electronic Shutter | Auto |
| Video Output | 1 Vpp |
| Auto Gain Control | Yes |
